Description:

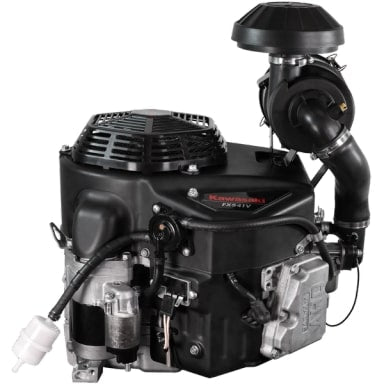

The FX541V engine is precision-designed to power your machines with Kawasaki strength.

This forced air-cooled V-twin engine features an internally vented carburetor with fuel shut-off solenoid. All FX engines are Critical Power SAE-Certified, compact, 90-degree V-twin engines. Every one features hemispherical combustion chambers and overhead V-valve technology that helps ensure low emissions, high power, and smooth operation.

Specifications:

• PTO Size: 1" x 3- 5/32"
• Shift Type Starter
• 15 Amp Charging Coil
• W/o MFLR
• Heavy Duty Canister Air Filter
• Overhead v-valve
• 90° V-twin
• Pressurized lubrication system
• Electronic spark ignition
• Automatic compression release
• Internally vented carburetor
• Rotating grass chopper screen
• Multi-Stage canister air filter
• Cast-iron cylinder liners
• Metal engine cover with integrated clean out ports
• Heavy duty shift-type starter
• Displacement 603 cc (36.8 cu. in.)
• Number of Cylinders 2
• Bore x Stroke 2.9 x 2.8 in. (73 x 72mm)
• Compression Ratio 8.1:1
• Oil capacity w/filter 1.8 U.S. qt ( 1.7 liters)
• Maximum Power 16.5 hp (12.3 kW) at 3,600 RPM
• Maximum Torque 32.1 ft lbs (43.4 N·m) at 2,000 RPM
• Dry Weight 89.7 lbs (40.7 kgs)
